ROOFIX Carbon Steel Fasteners are designed for fastening metal sheet to light to heavy section steel framing with or without intermediate insulation layers

Roofing Fasteners

Drill Tip Point

Application

For fixing of horizontal / top metal roofing sheets to structural steel / secondary substrate is said to be roofng / crest fxing. The fxing is done on the crest / top of the metal sheet. Secondary substrate could be a cold rolled steel (z/c purlins square pipes with thickness not more than 4mm).

buy stainless steel fasteners

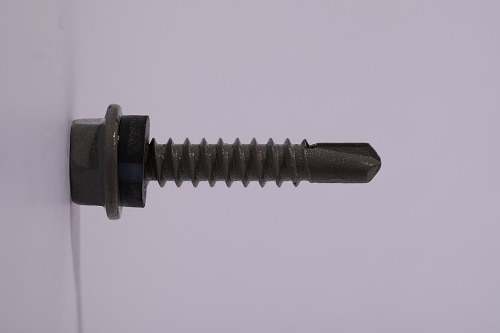

1R8A1477

Cladding Fasteners

Drill Tip Point

Application

For fixing of vertical metal roofing sheets to structural steel/secondary substrate is said to be wall cladding/valley fxing. The fxing is done on the valley between two tops on the roofng sheet. Structural steels could be cold rolled steel (i.e. purlins, square pipes with thickness not more than 4mm).

EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing Carton Qty
Stitching Fastener HEX Washer Head
201 10G - 16TPIX25MM with washer drill tip #3 3.0 mm 500 4000
202 12G - 14TPIX25MM with washer drill tip #3 4.5 mm 250 3000

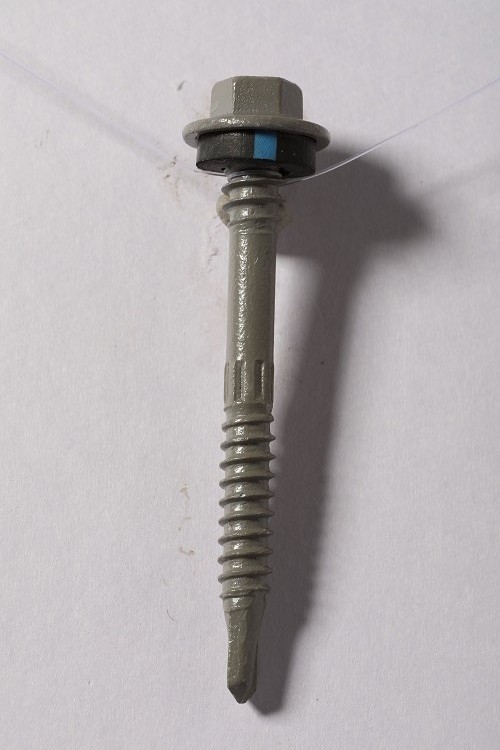

203 12G - 14TPIX45MM double threaded with edge guard drill tip #3 4.5 mm 250 3000
204 12G - 14TPIX55MM double threaded with edge guard drill tip #3 4.5 mm 250 3000
205 12G - 14TPIX68MM double threaded with edge guard drill tip #3 4.5 mm 200 1600

Common fastener sizes are mentioned above, For other sizes please contact us.
