Fiber Cement Fasteners

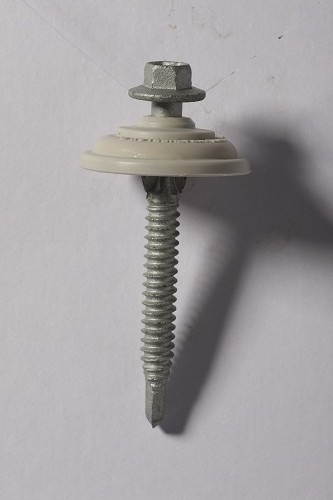

Fastening Fiber Cement Sheet To Steel Structure

APPLICATION

For direct fastening of fbre cement sheet to steel.

MATERIAL

Case hardened carbon steel Rust shield coating AISI 1022.

SEALING WASHER

EPDM dome washer.

PLATING

Rust shield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

HEAD

Hex washer head with special wings.

ACCESSORIES

Power fastener-gun with speed under 3000 rpm.

EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing Carton Qty
Stitching Fastener HEX Washer Head
501 14G - 14TPIX90MM DOME with washer drill tip #5 12 mm 50 400
502 14G - 14TPIX100MM DOME with washer drill tip #5 12 mm 50 400
503 14G - 14TPIX110MM DOME with washer drill tip #5 12 mm 50 400

Common fastener sizes are mentioned above. For other sizes please contact us.

POLYCARBONATE & FRP FASTENERS

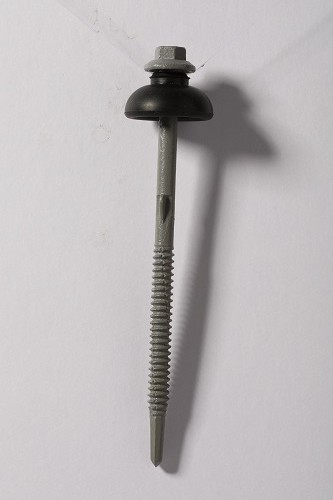

Fastener for Polycarbonate

Drill Tip (polyfix)

APPLICATION

Self-drilling fasteners PolyFix are used for polycarbonate sheet fixing

• Pre drills and self-centers during installation.

• Unique wing design cuts its own thermal expansion hole.

• Modified drill point allows application into both timber and steel.

• Save 50% on installation time.

SEALING WASHER

DEKS engineered EPDM dome washer 26 mm / 32 mm diameter

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance with ASTM, B117 and AS 3566. Chrome free coating as per the European standards

HEAD

Hex flange washer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM

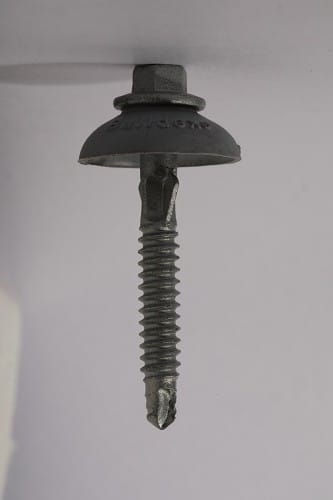

FRP Fasteners

Drill Tip Point

FASTENERS FOR FIBRE - REINFORCED PLASTIC SHEETS

APPLICATION

Self-drilling fasteners FRPFix are used for FRP sheet fixing

• Pre drills and self-centers during installation.

• Unique wing design cuts its own thermal expansion hole.

• Modified drill point allows application into both timber and steel.

• Save 50% on installation time.

SEALING WASHER

DEKS engineered weather-lok washer

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance with ASTM, B117 and AS 3566.Chrome free coating as per the European standards.

HEAD

Hex flange washer head

ACCESSORIES

Power fastener-gun with speed under 3000 RPM

EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing Carton Qty
Polycarbonate & FRP Fasteners Washer Head
510 14G - 14TPIX90MM Polycarbonate 26 mm EPDM Washers drill tip 5 mm 250 2000
511 M 6.50 X 65MM Polycarbonate 26 mm EPDM Washers drill tip 5 mm 200 1600
512 M 6.50 X 50MM Weatherlok Washer drill tip 5 mm 250 2000
513 M 6.50 X 65MM Weatherlok Washer drill tip 5 mm 200 1600

Common fastener sizes are mentioned above. For other sizes please contact us.
