STAINLESS STEEL FASTENERS

Drill Tip Point

APPLICATION

Self drilling fasteners are available in stainless steel. These are custom made and are made available on order. The material is available in various grades (304 / 316 / 410). There is a SS Cap only offered on carbon fasteners. Fasteners made of stainless steel are available. Bi-metallic fasteners are a combination of carbon steel tip and stainless body.

SEALING WASHER

DEKS True Blue EPDM washers.

HEAD

Hex flange washer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM.

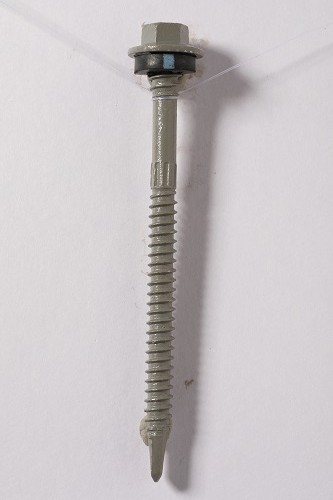

COMPOSITE PANEL FASTENERS

Drill Tip Point

APPLICATION

Self drilling fasteners for fastening metal sheets of composite panels

SEALING WASHER

DEKS True Blue EPDM washers.

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance with ASTM, B117 and AS 3566. Chrome free coating as per the European standards.

HEAD

Hex washer head 8mm

ACCESSORIES

Power Fastener-gun with speed under 3000 RPM

EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing
TAPCON / WOOD FASTENER HEX WASHER HEAD
551 12G - 14TPIX80MM HEX Flange Head drill tip 4.5 mm 150
552 12G - 14TPIX105MM HEX Flange Head drill tip 4.5 mm 150
553 12G - 14TPIX135MM HEX Flange Head drill tip 4.5 mm 100
554 12G - 24TPIX90MM HEX Flange Head drill tip 12 mm 150
555 12G - 24TPIX110MM HEX Flange Head drill tip 12 mm 100
556 12G - 24TPIX130MM HEX Flange Head drill tip 12 mm 100

Common fastener sizes are mentioned above. For other sizes please contact us
