Stitching & Roofing Fasteners


STITCHING FASTENER

NEEDLE POINT

Application

For overlapping of two metals roofing sheets to each other

MATERIAL

Case hardened carbon steel Rustshield coating AISI 1002.

SEALING WASHER

EPDM washer.

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

HEAD

Hex washer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM.

1R8A1446

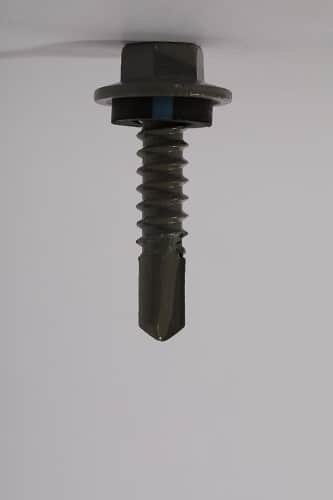

STITCHING FASTENER

DRILL TIP POINT

Application

For overlapping of two metals roofing sheets to each other

MATERIAL

Case hardened carbon steel Rustshield coating AISI 1002.

SEALING WASHER

EPDM washer.

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

HEAD

Hex washer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM.

1R8A1504
EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing Carton Qty
Stitching Fastener HEX Washer Head
101 10G - 16TPIX20MM ring EPDM washer Needle point Sharp point 1.2 mm 1000 8000
102 12G - 16TPIX20MM ring EPDM washer Needle point Sharp point 1.2 mm 500 4000
103 10G - 16TPIX16MM ring EPDM washer drill tip #2 2 mm 1000 8000
104 10G - 16TPIX20MM metal bonded EPDM washer drill tip #2 2 mm 500 6000

Common fastener sizes are mentioned above. For other sizes please contact us.
