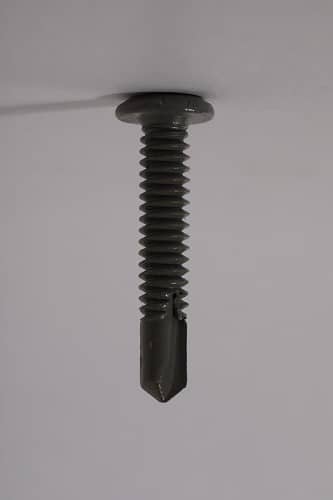

Fasteners Drilling (Grater Than 4.5mm)

Drill Tip Point

APPLICATION

For fxing of clips to the secondary substrate. The clips hold the roof.

MATERIAL

Case hardened carbon steel Rustshield coating AISI 1022

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

HEAD

Wafer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM.

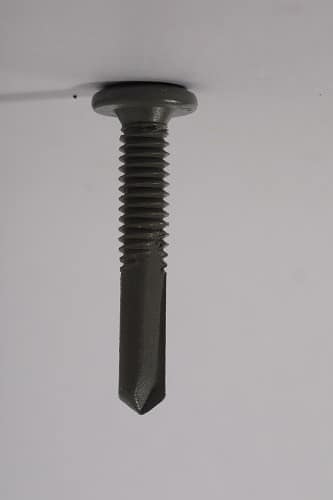

Fasteners Drilling (Grater Than 12 mm)

Drill Tip Point

APPLICATION

For fxing of clips to the secondary substrate. The clips hold the roof.

MATERIAL

Case hardened carbon steel Rustshield coating AISI 1022

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

HEAD

Wafer head.

ACCESSORIES

Power fastener-gun with speed under 3000 RPM.

CSK Wafer Head Fasteners

Drill Tip Point

FASTENING FOR FIXING FIBRE CEMENT, CALCIUM SILICATE, GYPSUM & BISON BOARDS

APPLICATION

For direct fastening of different boards to steel.

MATERIAL

Case hardened carbon steel Rustshield coating AISI 1022.

PLATING

Rustshield coating is a unique co-polymer coating that provides greater resistance than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.

ACCESSORIES

Power fastener-gun with speed under 2500 RPM.

EZI Find Description (GXTPIXL) Point Type Drill Thickness (mm) Box Pacing Carton Qty
601 10G - 24TPIX25MM Wafer Head Zinc Coated drill tip 2.5 mm 1000 8000
602 10G - 24TPIX25MM Wafer Head Rust shield Coated drill tip 2.5 mm 500 6000
603 12G - 24TPIX32MM Wafer Head Rust shield Coated drill tip 12 mm 500 4000
CSK WAFER HEAD FASTENERS HEX WASHER HEAD
631 8G - 18TPIX25MM CSK Wafer Head 6 Ribbed Wing Teks 2 mm 1000 8000
632 8G - 18TPIX40MM CSK Wafer Head 6 Ribbed Wing Teks 2 mm 500 6000

Common fastener sizes are mentioned above, For other sizes please contact us.
