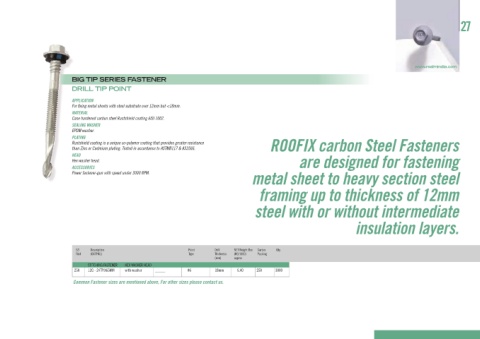

P. 29
27
BIG TIP - CONCRETE - CSK HEAD FASTENERS
www.realmindia.com
BIG TIP SERIES FASTENER
DRILL TIP POINT
APPLICATION
For fixing metal sheets with steel substrate over 12mm but <18mm.
MATERIAL
Case hardened carbon steel Rustshield coating AISI 1002.
SEALING WASHER
EPDM washer.
PLATING
Rustshield coating is a unique co-polymer coating that provides greater resistance ROOFIX carbon Steel Fasteners
than Zinc or Cadmium plating. Tested in accordance to ASTMB117 & AS3566.
HEAD
Hex washer head. are designed for fastening
ACCESSORIES
metal sheet to heavy section steel
Power fastener-gun with speed under 3000 RPM.
framing up to thickness of 12mm
steel with or without intermediate
insulation layers.
EZI Description Point Drill NET Weight Box Carton Qty.
Find (GXTPIXL) Type Thickness (KG/1000) Packing
(mm) approx
STITCHING FASTENER HEX WASHER HEAD
250 12G - 24TPIX65MM with washer _____ #6 18mm 6.40 250 3000
Common Fastener sizes are mentioned above, For other sizes please contact us.
