22 www.roofix.in

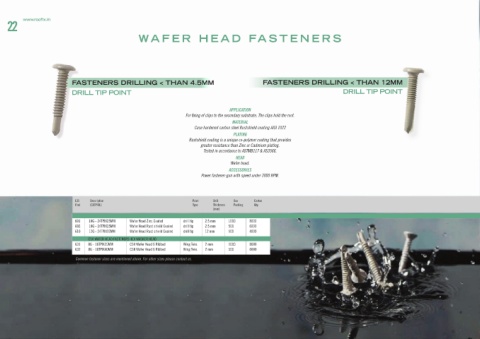

W AFER HEAD FASTENERS

FASTENERS DRILLING < THAN 4.5MM FASTENERS DRILLING < THAN 12MM
DRILL TIP POINT DRILL TIP POINT

APPLICATION
For fixing of clips to the secondary substrate. The clips hold the roof.
MATERIAL
Case hardened carbon steel Rustshield coating AISI 1022
PLATING
Rustshield coating is a unique co-polymer coating that provides
greater resistance than Zinc or Cadmium plating.
Tested in accordance to ASTMB117 & AS3566.
HEAD
Wafer head.
ACCESSORIES
Power fastener-gun with speed under 3000 RPM.

EZI Description Point Drill Box Carton
Find (GXTPIXL) Type Thickness Packing Qty.
(mm)
WAFER HEAD FASTENERS HEX WASHER HEAD
601 10G - 24TPIX25MM Wafer Head Zinc Coated drill tip 2.5 mm 1000 8000
602 10G - 24TPIX25MM Wafer Head Rust shield Coated drill tip 2.5 mm 500 6000
610 12G - 24TPIX32MM Wafer Head Rust shield Coated drill tip 12 mm 500 4000
CSK WAFER HEAD FASTENERS HEX WASHER HEAD
631 8G - 18TPIX25MM CSK Wafer Head 6 Ribbed Wing Teks 2 mm 1000 8000
632 8G - 18TPIX40MM CSK Wafer Head 6 Ribbed Wing Teks 2 mm 500 6000
Common fastener sizes are mentioned above. For other sizes please contact us.
