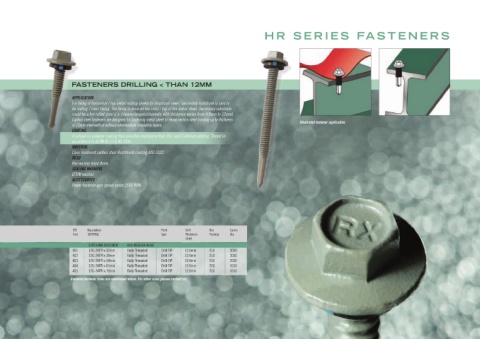

Page 23 - Realm Catalog

HR SERIES FASTENERS

FASTENERS DRILLING < THAN 12MM

APPLICATION
For fixing of horizontal / top metal roofing sheets to structural steel / secondary substrate is said to
be roofing / crest Fixing. The fixing is done on the crest / top of the metal sheet. Secondary substrate
could be a hot rolled steel (i.e. I beams/angels/channels with thickness varies from 4.5mm to 12mm).
Carbon steel fasteners are designed for fastening metal sheet to heavy section steel framing up to thickness Illustrated fastener application.
of 12mm steel with or without intermediate insulation layers.
COATING
A unique co-polymer coating that provides resistance than Zinc and Cadmium plating. Tested in
accordance to ASTM B117 & AS 3566.
MATERIAL
Case hardened carbon steel Rustshield coating AISI 1022.
HEAD
Hex washer head 8mm.
SEALING WASHERS
EPDM washer.
ACCESSORIES
Power fastener-gun speed under 2500 RPM.

EZI Description Point Drill Box Carton
Find (GXTPIXL) Type Thickness Packing Qty.
(mm)
STITCHING FASTENER HEX WASHER HEAD
401 12G-24TPI x 32mm Fully Threaded Drill TIP 12.0mm 250 3000
402 12G-24TPI x 38mm Fully Threaded Drill TIP 12.0mm 250 3000
403 12G-24TPi x 50mm Fully Threaded Drill TIP 12.0mm 250 2000
404 12G-24TPi x 65mm Fully Threaded Drill TIP 12.0mm 200 1600
EZI Description Point Drill Box Carton
Find (GXTPIXL) Type Thickness Packing Qty. 405 12G-24TPi x 70mm Fully Threaded Drill TIP 12.0mm 200 1600
(mm)
Common fastener sizes are mentioned above. For other sizes please contact us.
