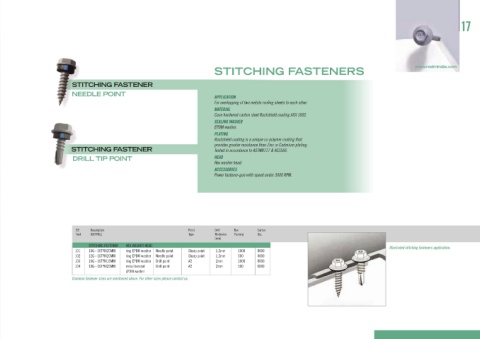

Page 19 - Realm Catalog

17
STITCHING & ROOFING FASTENERS

STITCHING FASTENERS www.realmindia.com

STITCHING FASTENER
NEEDLE POINT APPLICATION
For overlapping of two metals roofing sheets to each other.
MATERIAL
Case hardened carbon steel Rustshield coating AISI 1002.
SEALING WASHER
EPDM washer.
PLATING
Rustshield coating is a unique co-polymer coating that
provides greater resistance than Zinc or Cadmium plating.
STITCHING FASTENER Tested in accordance to ASTMB117 & AS3566.
DRILL TIP POINT HEAD
Hex washer head.
ACCESSORIES
Power fastener-gun with speed under 3000 RPM.

EZI Description Point Drill Box Carton
Find (GXTPIXL) Type Thickness Packing Qty.
(mm)
STITCHING FASTENER HEX WASHER HEAD Illustrated stitching fasteners application.
101 10G - 16TPIX20MM ring EPDM washer Needle point Sharp point 1.2mm 1000 8000
102 12G - 16TPIX20MM ring EPDM washer Needle point Sharp point 1.2mm 500 4000
103 10G - 16TPIX16MM ring EPDM washer Drill point #2 2mm 1000 8000
104 10G - 16TPIX20MM metal bonded Drill point #2 2mm 500 6000
EPDM washer
Common fastener sizes are mentioned above. For other sizes please contact us.
