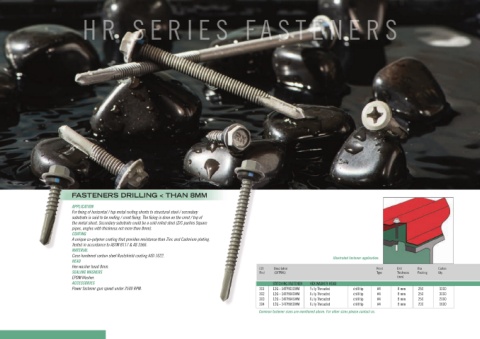

HR SERIES F ASTENERS

FASTENERS DRILLING < THAN 8MM

APPLICATION
For fixing of horizontal / top metal roofing sheets to structural steel / secondary
substrate is said to be roofing / crest fixing. The fixing is done on the crest / top of
the metal sheet. Secondary substrate could be a cold rolled steel (Z/C purlins Square
pipes, angles with thickness not more than 8mm).
COATING
A unique co-polymer coating that provides resistance than Zinc and Cadmium plating.
Tested in accordance to ASTM B117 & AS 3566.
MATERIAL
Case hardened carbon steel Rustshield coating AISI 1022. Illustrated fastener application.
HEAD
Hex washer head 8mm. EZI Description Point Drill Box Carton
SEALING WASHERS Find (GXTPIXL) Type Thickness Packing Qty.
EPDM Washer. (mm)
ACCESSORIES STITCHING FASTENER HEX WASHER HEAD
Power fastener-gun speed under 2500 RPM. 301 12G - 14TPIX30MM Fully Threaded drill tip #4 8 mm 250 3000
302 12G - 14TPIX40MM Fully Threaded drill tip #4 8 mm 250 3000
303 12G - 14TPIX45MM Fully Threaded drill tip #4 8 mm 250 2000
304 12G - 14TPIX60MM Fully Threaded drill tip #4 8 mm 200 1600
Common fastener sizes are mentioned above. For other sizes please contact us.
