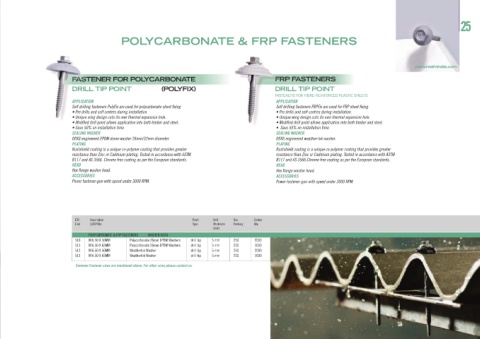

Page 27 - Realm Catalog

25

POLYCARBONATE & FRP FASTENERS

www.realmindia.com
FASTENER FOR POLYCARBONATE FRP FASTENERS

DRILL TIP POINT (POLYFIX) DRILL TIP POINT
FASTENERS FOR FIBRE-REINFORCED PLASTIC SHEETS
APPLICATION APPLICATION
Self drilling fasteners PolyFix are used for polycarbonate sheet fixing Self drilling fasteners FRPFix are used for FRP sheet fixing
• Pre drills and self centers during installation. • Pre drills and self centres during installation.
• Unique wing design cuts its own thermal expansion hole. • Unique wing design cuts its own thermal expansion hole.
• Modified drill point allows application into both timber and steel. • Modified drill point allows application into both timber and steel.
• Save 50% on installation time. • Save 50% on installation time.
SEALING WASHER SEALING WASHER
DEKS engineered EPDM dome washer 26mm/32mm diameter DEKS engineered weather-lok washer.
PLATING PLATING
Rustshield coating is a unique co-polymer coating that provides greater Rustshield coating is a unique co-polymer coating that provides greater
resistance than Zinc or Cadmium plating. Tested in accordance with ASTM resistance than Zinc or Cadmium plating. Tested in accordance with ASTM
B117 and AS 3566. Chrome free coating as per the European standards. B117 and AS 3566.Chrome free coating as per the European standards.
HEAD HEAD
Hex flange washer head. Hex flange washer head.
ACCESSORIES ACCESSORIES
Power fastener-gun with speed under 3000 RPM. Power fastener-gun with speed under 3000 RPM.

EZI Description Point Drill Box Carton
Find (GXTPIXL) Type Thickness Packing Qty.
(mm)
POLYCARBONATE & FRP FASTENERS WASHER HEAD
510 M 6.50 X 50MM Polycarbonate 26mm EPDM Washers drill tip 5 mm 250 2000
511 M 6.50 X 65MM Polycarbonate 26mm EPDM Washers drill tip 5 mm 200 1600
512 M 6.50 X 50MM Weatherlok Washer drill tip 5 mm 250 2000
513 M 6.50 X 65MM Weatherlok Washer drill tip 5 mm 200 1600
Common Fastener sizes are mentioned above, For other sizes please contact us.
